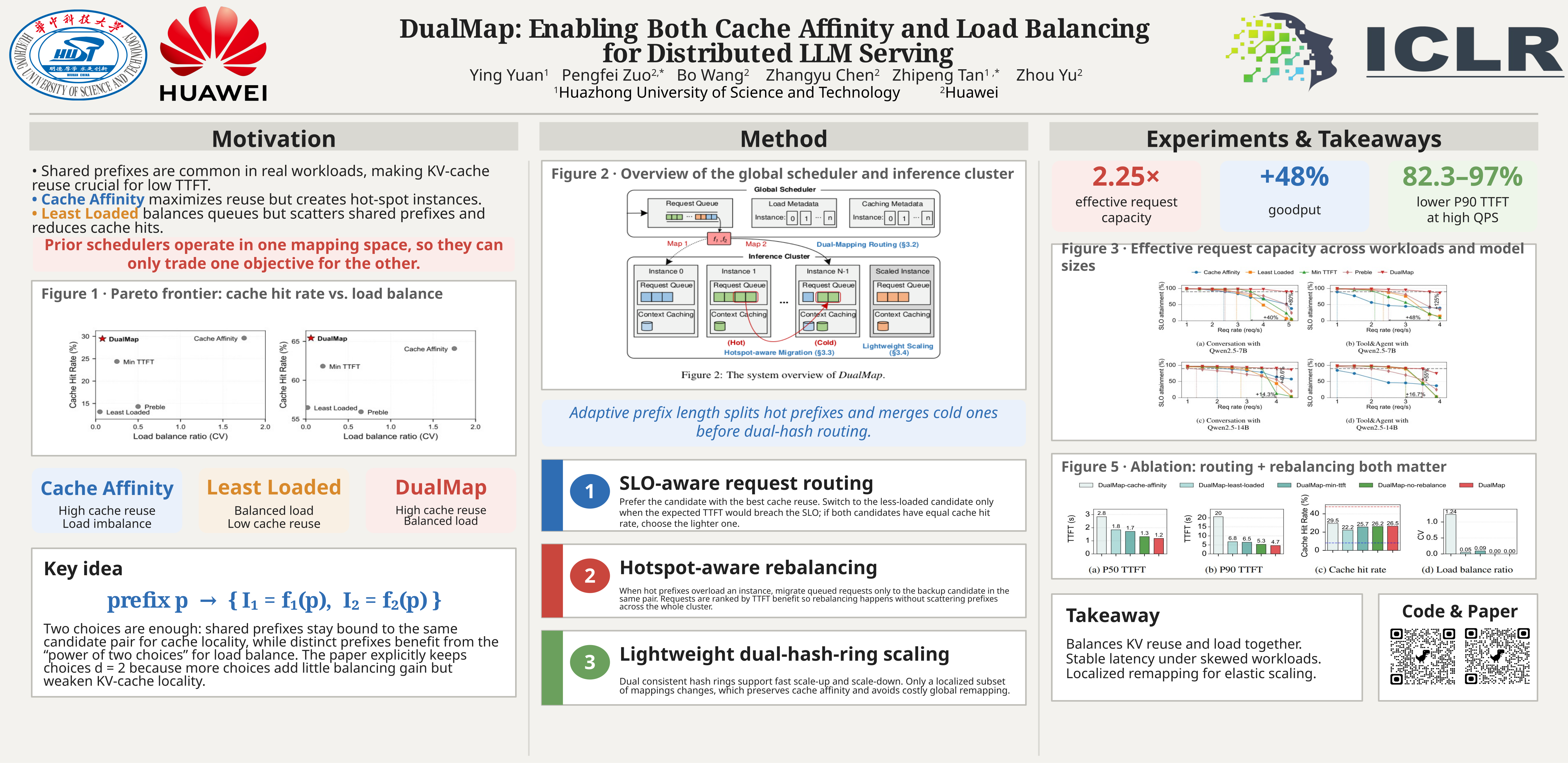

DualMap: Enabling Both Cache Affinity and Load Balancing for Distributed LLM Serving

In large language model (LLM) serving, reusing the key-value (KV) cache of prompts across requests is a key technique for reducing time-to-first-token (TTFT) and lowering serving costs. Cache-affinity scheduling, which co-locates requests with the same prompt prefix to maximize KV cache reuse, often conflicts with load-balancing scheduling, which aims to distribute requests evenly across compute instances. Existing schedulers struggle to reconcile this trade-off, as they operate within a single mapping space, typically applying cache-affinity routing to a subset of requests and load-balanced routing to the rest, without a unified solution to achieve both goals. To overcome this limitation, we propose DualMap, a dual-mapping scheduling strategy for distributed LLM serving that simultaneously enables cache affinity and load balancing. The key idea of DualMap is to map each request to two candidate instances using two independent hash functions based on the request prompt, and then intelligently select the better candidate based on current system states. This design increases the likelihood that requests with shared prefixes are co-located, while evenly dispersing distinct prefixes across the cluster via ``the power of two choices''. To make DualMap robust under dynamic and skewed real-world workloads, we incorporate three techniques: 1) SLO-aware request routing, which prioritizes cache affinity but switches to load-aware scheduling when TTFT exceeds the SLO, enhancing load balance without sacrificing cache reuse; 2) hotspot-aware rebalancing, which dynamically migrates requests from overloaded to underloaded instances, mitigating hotspots and rebalancing the system; 3) lightweight dual-hash-ring scaling, which leverages a dual-hash-ring mapping to support fast and low-overhead instance scaling without costly global remapping. Experiments on real-world workloads show that DualMap improves effective request capacity by up to 2.25$\times$ under the same TTFT SLO constraints, compared with the state-of-the-art work.
